Water-Based Printer

MUTOH XpertJet 1948WX

The MUTOH’s 1910 mm/75” Wide Water-based Inkjet Printer with 4 staggered print heads opens a new era of high production dye-sublimation printing.

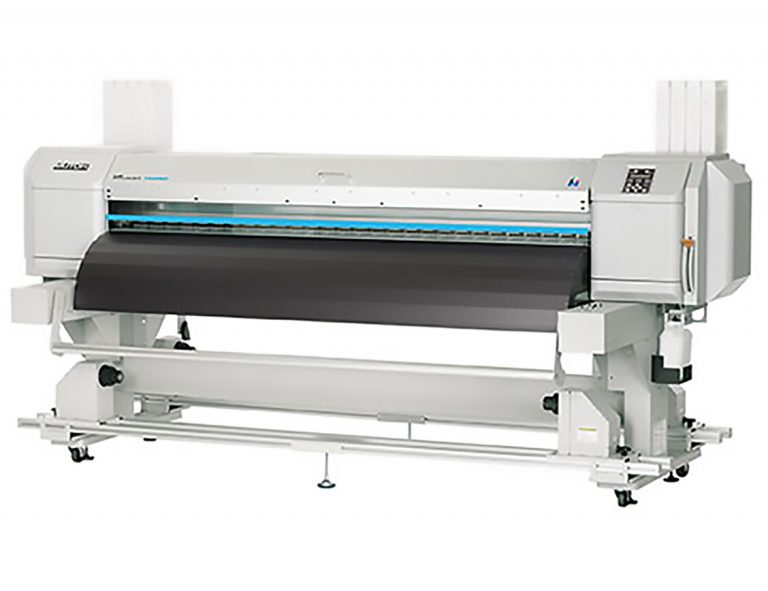

MUTOH XpertJet 1948WX Water-Based Printer

Features

The ValuaJet 1948WX, high speed dye-sublimation inkjet printer effortlessly delivers the best-in-class speed and superior print quality.
Staggered 4 print head-setup enables high-speed printing and improved productivity, the VJ-1948WX achieves a maximum print speed of 117.3m²/h*.
With the addition of new custom modes, the options of the printing function are significantly widened.
The large dual heaters are incorporate on the rear side of the front paper guides, and it provides fast dry times and accelerates production speeds.
The MUTOH original dye-sublimation transfer ink (DH21) provides optimum print quality and wide color gamut. The DH21 ink is available in a 4-color configuration CMYK and 7-color (CMYK, LC, LM, LK). Large capacity ink bags (1,000ml or 2,200ml) with the original ink cases support prolonged continuous printing.
A special feature of the MUTOH Status Monitor (MSM), the ValueJet Print Server (VPS) provides high-speed and stable printing.
Creates scarves, blankets, promotional items, trade show graphics, flags, banners, custom interior designs, apparel, sports uniforms and more.
*at 360x720dpi

Features:

MUTOH dye-sublimation ink“DH21”
Staggered 4 print heads
Variable Dot Technology
3 steps head height adjustment
Built-in large dual heaters
Pressure roller down system
Equipped the automatic cutting function

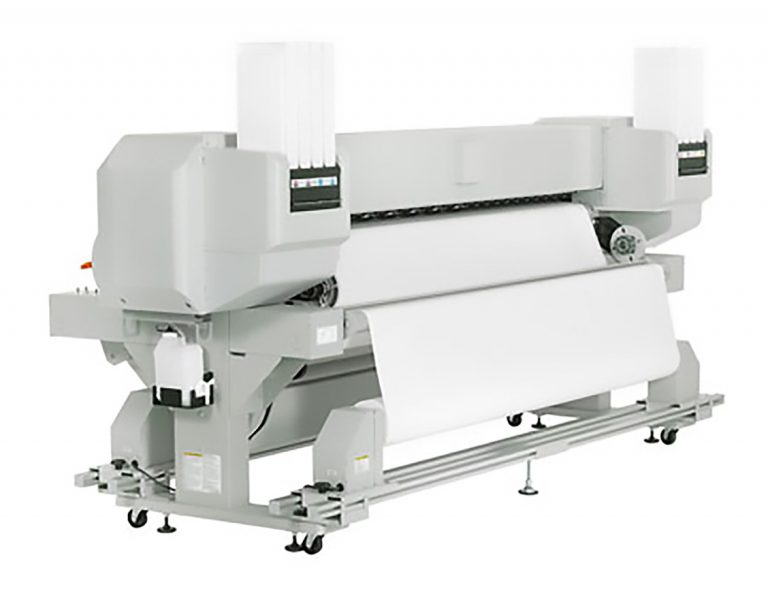

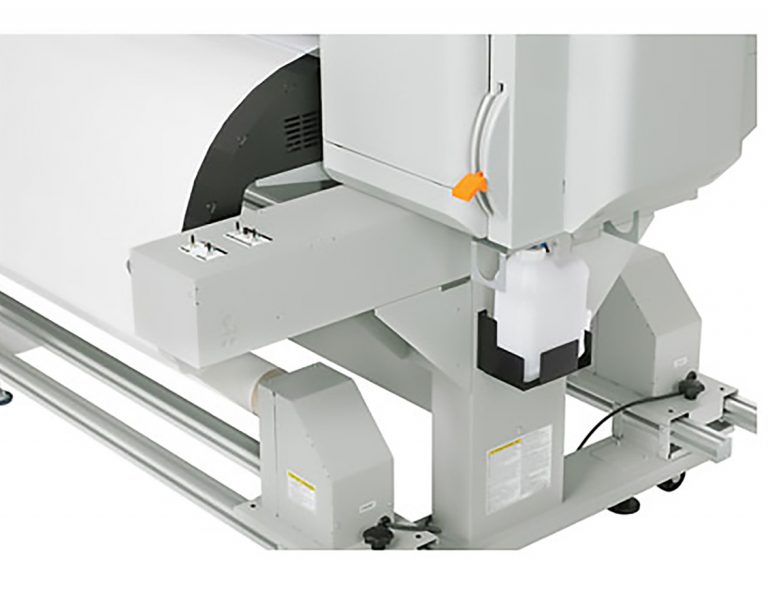

Feed and take-up system included (up to 100kg)
Easy daily maintenance

Applications:

Specifications

Model Name		VJ-1948WX
Print Technology		Drop-on-demand Micro Piezo Inkjet Technology
Print Head		4 (staggered setup)
Head Heights		Low:1.5mm / Middle:2.5mm / High: 4.0mm
Max. Media Width		1910mm
Max. Print Width		1900mm
Ink	Type	Water-based dye sublimation transfer ink
	Ink set	4-color (Black, Cyan, Magenta, Yellow) 7-color (Black, Cyan, Magenta, Yellow, Light Cyan, Light Magenta, Light Black)
	Volume	1000ml/2200ml ink bag
	No. of slot	8
Print Resolutions		1440/1080/720/360dpi (10 modes as standard + 19 modes as custom)
Interface		Gigabit-Ethernet（1000BASE-T）
Media Measurements*		φ150mm/ 2″ & 3″ / 30kg or less
Heater Control System		Heaters（30-50℃), OFF
Power Supply		AC 100-120V/AC 200-240V – 60/50 Hz
A-property Acoustic Power Level (Actual Measured Value)		69.8dB or less
Printer Accuracy Guaranteed Environment		Temperature: 20~30℃ Humidity: 40~60%RH (Non Condensing)
Power Consumption		Operating Status:600W or less, In standby: 91W or less
Machine Measurements		W2983 x D966 x H1261mm (including a stand)
Machine Measurements		W2983 x D1334 x H1261 mm (including a stand + feed and take-up system)
Packing Size		Printer: W3165 x D1150 x H900mm, Weight: 268kg
		Stand: W2462 x D395 x H250mm, Weight: 42kg
		Feed and take-up system (100kg): W2780 x D1080 x H433mm, Weight: 159kg
Weight		printer: 164kg Stand: 37kg Feed and take-up system: 89kg
Optional		Feed and take-up system VJ-19TUP100 (100kg)
		Take-up system VJ-16/19TUP30 (30kg)
		1000ml/2200ml ink bag case
		Cutter blade VJ-CB

*Due to the removal of the flange joint, the 2-inch media core can be adjusted; however, do not use the solid 2-inch core media.
