Water-Based Printer

MUTOH XpertJet 1938WX

The MUTOH’s 1910 mm/75” Wide Water-based Inkjet Printer with staggered dual print heads is perfect for high-production dye-sublimation and direct printing to applications.

MUTOH XpertJet 1938WX Water-Based Printer

Features

The ValueJet 1938WX,, high speed water-based inkjet printer effortlessly delivers the best-in-class speed and superior print quality at sellable production of 52m²/h*. Creates scarves, blankets, promotional items, trade show graphics, flags, banners, custom interior designs, apparel, sports uniforms and more. The VJ-1938WX, provides outstanding performance at a competitive price, making it the smart printer choice for shops looking to expand applications, increase production and improve efficiency.
In today’s competitive market place you need a printer that is simple to learn and easy to run. The VJ-1938WX, provides a low maintenance learning curve with no complicated operating issues.

*at 360x720dpi

Features:

MUTOH water-based pigment ink (220ml cartridge) or
water-based dye sublimation ink“DH21”(1000ml bag)
CMYK x 2 or 7 colors

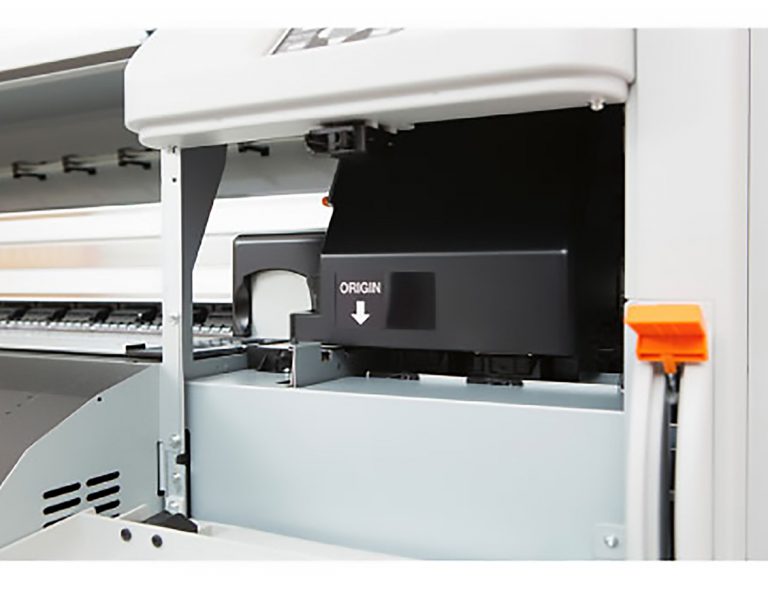

Staggered dual print heads
Variable Dot Technology

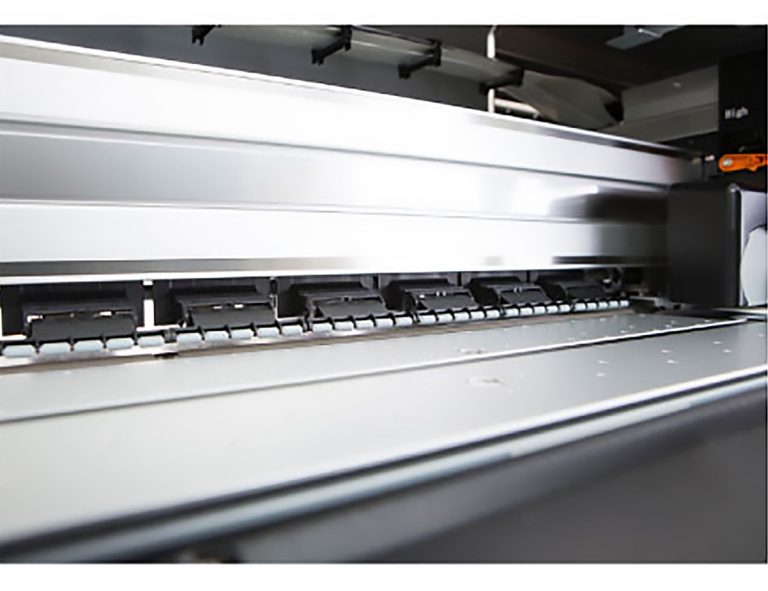

3 steps head height adjustment

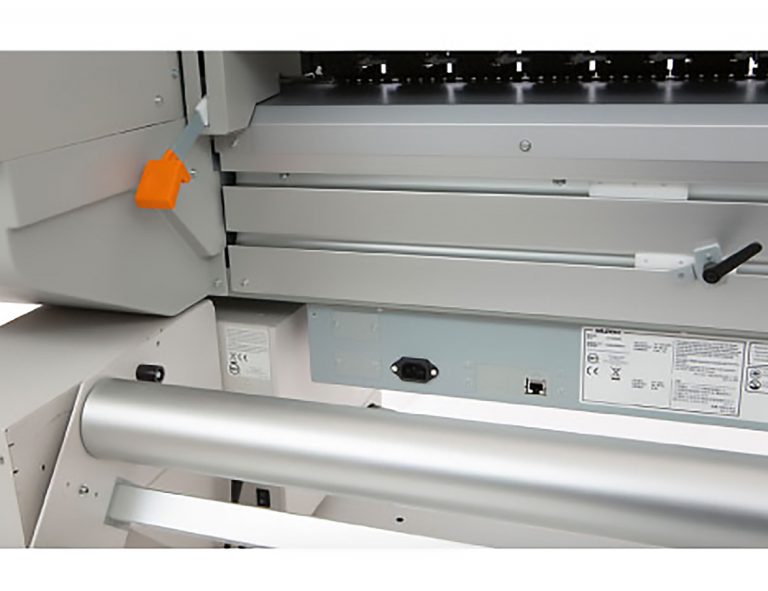

Rear media feed lever
Automatic sheet off function
Easy daily maintenance

Applications:

Specifications

Model Name		VJ-1938WX
Printer Technology		Drop-on-demand Micro Piezo Inkjet Technology
Print Head		2 (staggered setup)
Head Heights		Low:1.5mm / Middle:2.5mm / High: 4.0mm
Max. Media Width		1910mm
Max. Print Width		1900mm
Ink Type		Water-based pigment ink / Water-based dye sublimation transfer ink
Water-based pigment ink	Ink Colors	KCMY – 4 colors
Water-based pigment ink	Ink Volume	220ml cartridge
Water-based dye sublimation transfer ink	Ink Colors	4-color (Black, Cyan, Magenta, Yellow) 7-color (Black, Cyan, Magenta, Yellow, Light Cyan, Light Magenta, Light Black)
Water-based dye sublimation transfer ink	Ink Volume	1000ml ink bag
Print Resolutions		1440/1080/720/360dpi (10 modes as standard + 19 modes as custom**)
Interface		Ethernet 1000BASE-T
Media Measurements *		φ150mm/ 2″ & 3″ / 30kg or less
Heater Control System		N/A
Power Supply		AC 100-240V – 60/50 Hz
A-property Acoustic Power Level (Actual Measured Value)		69.8dB or less
Printer Accuracy Guaranteed Environment		Temperature: 20～30℃ Humidity: 40～60%RH (Non Condensing)
Power Consumption		Operating Status: 160W or less, In standby: 40W or less
Machine Measurements		W 2983 x D 885.5 x H 1261mm
Packing Size		Printer: W 3165 x D 1150 x H 851mm, Weight: 257kg
		Stand: W 2462 x D 395 x H 250mm, Weight: 42kg
		Optional feed and take-up system (100kg): W 2780 x D 1080 x H 433mm, Weight: 159kg
Printer Weight		194kg including a stand
Optional		Feed and take-up system VJ-19TUP100 (100kg)
		Take-up system VJ-16/19TUP30 (30kg)
		1,000ml bottle bulk system adapters
		Cutter blade VJ-CB

*Due to the removal of the flange joint, the 2-inch media core can be adjusted; however, do not use the solid 2-inch core media.
**Custom modes are set by the RIP software. For the details, please contact your authorized dealer.
