Water-Based Printer

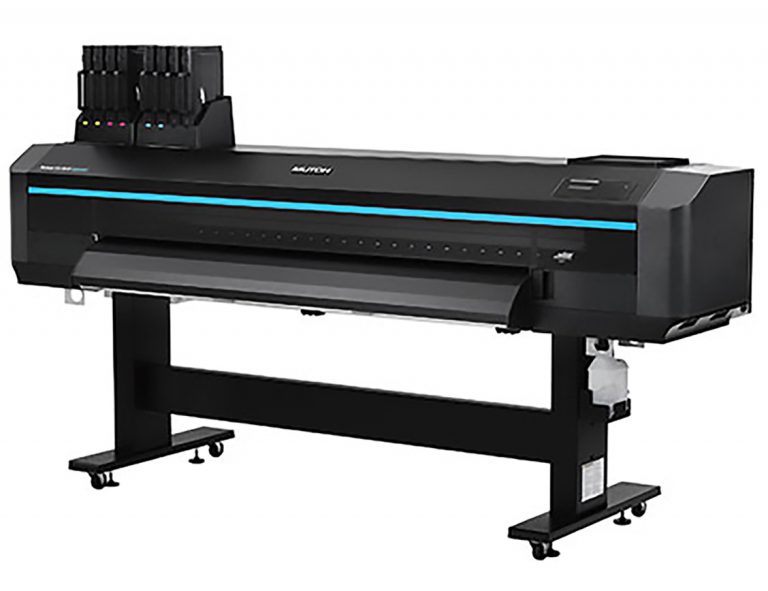

MUTOH XpertJet 1682WR

The 1625 mm /64” Wide High Speed Water-based Inkjet Printer enhanced a wide range of media handling and stable transport. The dual head XpertJet 1682WR (1625mm-64”) is a high speed water-based inkjet printer with a new platform that inherits the properties of XpertJet series.

Features

The XPJ-1682WR provides improved usability and reduce operational workload which will ensure high-quality prints, high productivity outputs and user-friendly operation. Newly developed “Multi-stage pressurizing system” enhances media feed stability for a wide range of media.
The MUTOH original dye-sublimation transfer ink (DH21) provides optimum print quality and wide color gamut. The DH21 ink is available in a 4-color configuration CMYK and 7-color (CMYK, LC, LM, LK). Large capacity ink bags (1,000ml or 2,200ml) with the original ink cases support prolonged continuous printing.
The XPJ-1682WR delivers high quality graphics onto a wide range of materials such as trade show graphics, flags, banners, custom interior designs, apparel, sports uniforms and more.
The XPJ-1682WR brings the best “Made in Japan Quality” to the various markets.

Features:

  • High Precision Aluminum Rail Mechanism
  • Multi-stage pressurizing mechanism
  • MUTOH water-based dye-sublimation ink “DH21”
  • Automatic Bi-Directional alignment with built-in color sensor
  • Automatic media feed adjustment
  • Nozzle selection
  • Media roll balance management

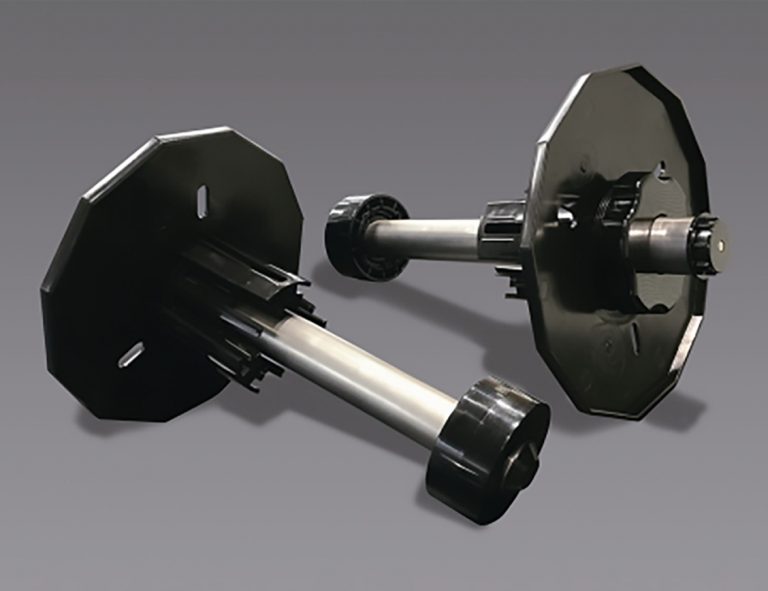

  • Media feed flange

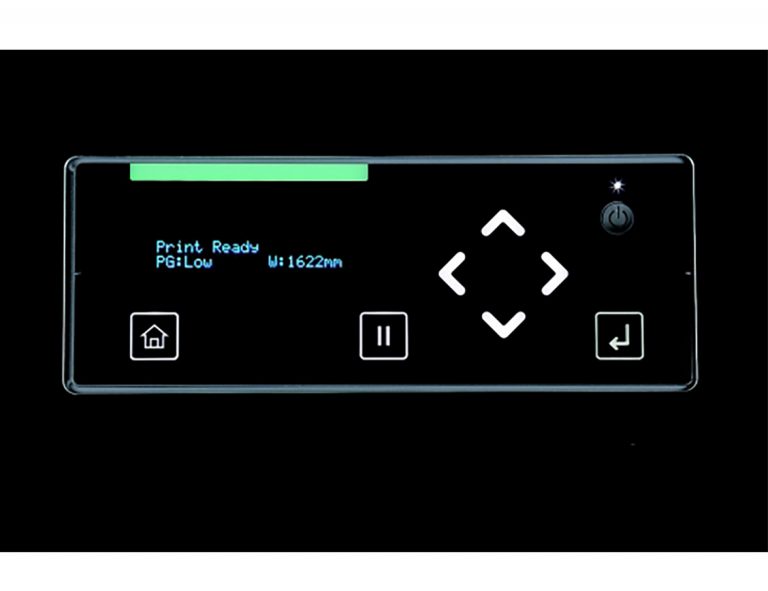

  • LED touch panel

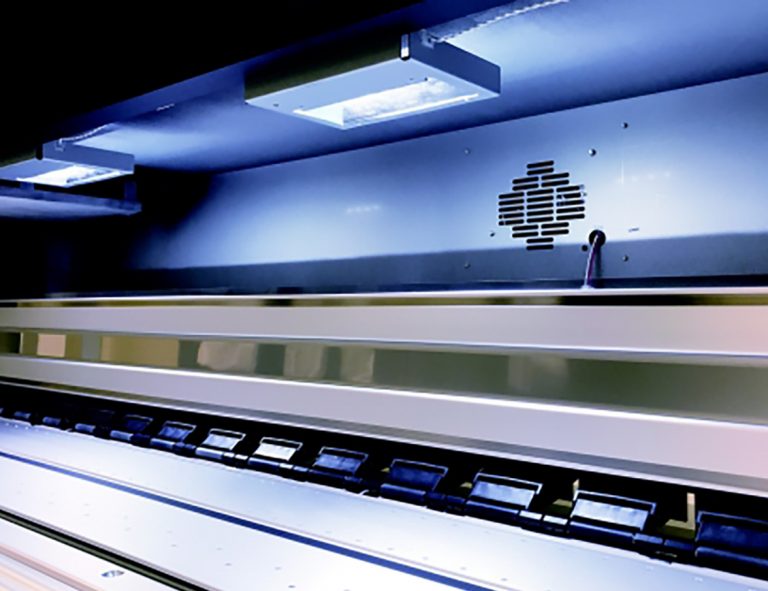

  • Internal LED lighting
  • Motorized take-up systems

Applications:

Specifications


Model NameXPJ-1682WR
Print TechnologyDrop-on-demand Micro Piezo Inkjet Technology
Print Head2 (staggered setup)
Head HeightsLow:1.5mm / Middle:2.5mm / High: 4.0mm
MediaWidthMaximum 1625mm Minimum 500mm
Thickness0.3mm (the head height is set to Low) 1.3mm (the head height is set to Mid) 2.8mm (the head height is set to High)
MesurementØ 150 mm / 2” & 3” / 30 kg or less
Maximum Printable Width1615mm
Maximum Print Length1500mm
InkTypeWater-based dye sublimation ink
Ink set4-color (Black, Cyan, Magenta, Yellow)
7-color (Black, Cyan, Magenta, Yellow, Light Cyan, Light Magenta, Light Black)
Volume1000ml/2200ml ink bag
No. of slot8
Maximum Print Resolution1440 x 1440dpi
InterfaceGb-Ethernet (1000BASE-T)
Power RequirementsVoltage: AC 100V~120V ±10% / AC 200V~240V ±10% Frequency: 50/60Hz ±1Hz
NoisePrinting: 70.4 dB Standby: 64.2 dB
Printable EnvironmentPrinter OperationTemperature: 20℃~32℃ Humidity: 40%~60% No condensing
Accuracy GuaranteedTemperature: 22℃~30℃ Humidity: 40%~60% No condensiing
Printer Dimensions (WxDxH)Main body:2770mmx895mmx1428mm(cover closed), /(when installing ink bag cases:1611mm)
Printer WeightMain body: 141kg Stand: 32kg
OptionalTake-up UnitSupported media weight up to 30kg
Take-up UnitSupported media weight up to 40kg
Take-up UnitSupported media weight up to 100kg/220lbs
Roll Media FlangeTorque:1kgf.cm 1 piece/box
Roll Media Flange_High TorqueTorque:4kgf.cm 1 piece/box
2200ml Ink Bag CaseSupported ink bag: 1000ml/2200ml 4 cases/box
1000ml Ink Bag CaseSupported ink bag: 1000ml 4 cases/box
Cutter BladeReplacement cutter blade
*The specifications are subject to change without notice.
