Water-Based Printer

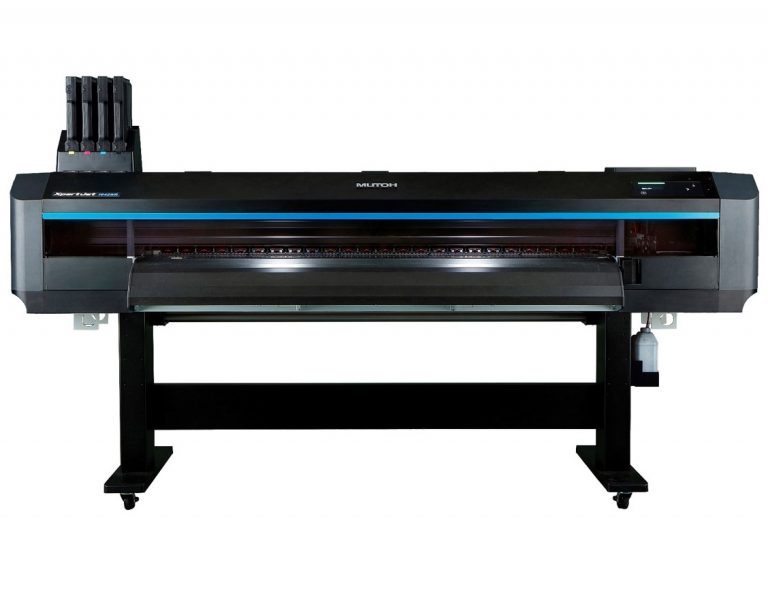

MUTOH XpertJet 1642WR Pro

The 1625 mm /64” Wide High Speed Water-based Inkjet Printer with newly developed print heads provides high productivity, high print quality and user convenience.


The XpertJet 1642WR Pro is a 64” – 1625mm wide water-based inkjet printer with a new platform that inherits the properties of XpertJet series. Dual extra wide and high density piezo print head “AccuFine”, delivering the best in class ink drop placement accuracy, achieves both high-speed printing and high image quality. Even at high speed, the “AccuFine” can produce high-quality solid printing with less banding. Various new features provide improve user convenience.
The MUTOH original dye-sublimation ink provides superior media transfer, achieves high density colors with less ink consumption. The fast ink drying enables printings on thinner/lighter transfer papers, and excellent jetting and color stability support prolong printing.
The XpertJet 1642WR Pro delivers high quality graphics onto a wide range of materials such as trade show graphics, bags, banners, custom interior design, apparel, custom merchandise and more.
The XpertJet 1642WR Pro brings the best “Made in Japan Quality” to the various markets.


  • High Precision Aluminum Rail Mechanism

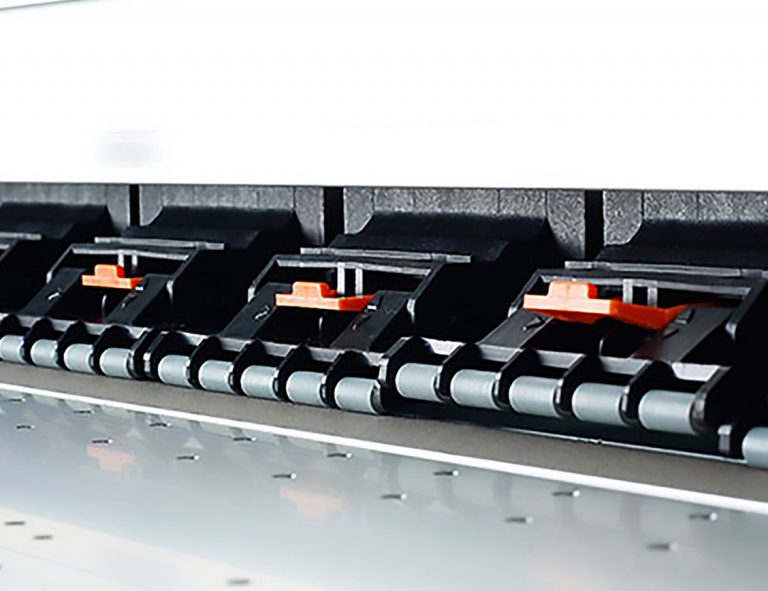

  • Multi-stage pressurizing mechanism
  • 4 step PG settings
  • MUTOH water-based dye-sublimation ink “DH21”
  • Automatic Bi-Directional alignment with built-in color sensor
  • Automatic media feed adjustment
  • Automatic nozzle checking
  • Nozzle selection
  • Media roll balance management

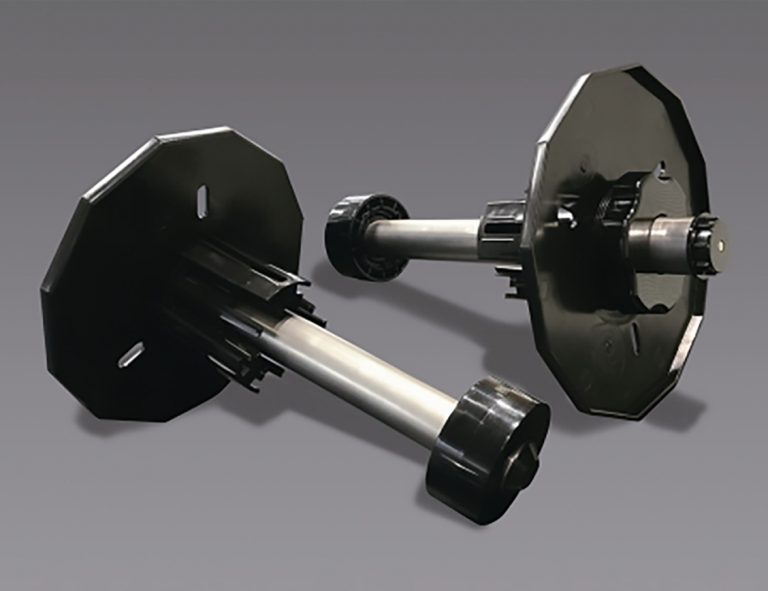

  • Media feed flange

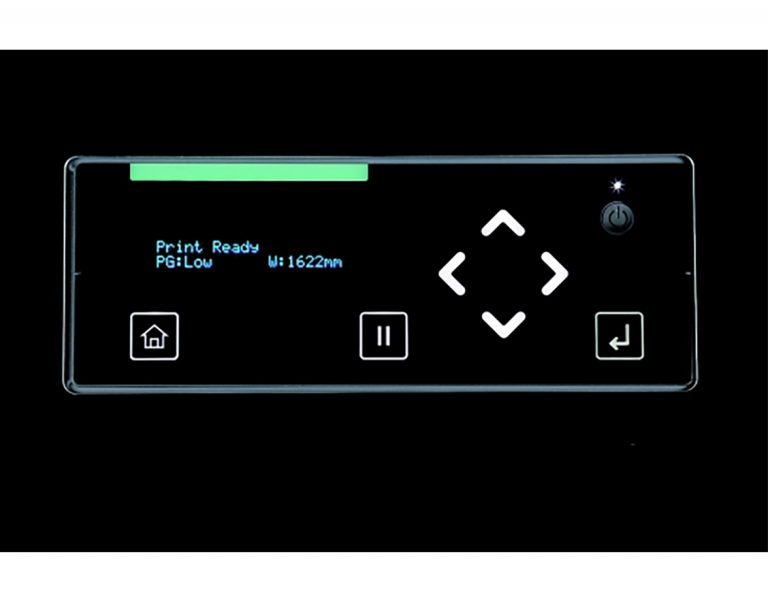

  • LED touch panel
  • Internal LED lighting
  • Motorized take-up systems




Model NameXPJ-1642WR
Print TechnologyDrop-on-demand Micro Piezo Inkjet Technology
Print Head2 (staggered setup)
Head HeightsFour-level adjustment of Low 1: 1.5mm, Low 2: 2.0mm, Mid.: 2.5mm, High: 4.0mm
MediaWidthMaximum 1625mm Minimum 500mm
MesurementØ 150 mm / 2” & 3” / 30 kg or less
Maximum Printable Width1615mm
Maximum Print Length1500mm
InkTypeWater-based dye sublimation ink “DH21”
Ink set4-color (Black, Cyan, Magenta, Yellow)
Volume1000ml/2200ml ink bag
No. of slot4
Maximum Print Resolution1200dpi
InterfaceGb-Ethernet (1000BASE-T)
Power RequirementsVoltage: AC 100V~120V ±10% / AC 200V~240V ±10% Frequency: 50/60Hz ±1Hz
NoisePrinting: 70.4 dB Standby: 64.2 dB
Printable EnvironmentPrinter OperationTemperature: 20℃~32℃ Humidity: 40%~60% No condensing
Accuracy GuaranteedTemperature: 22℃~30℃ Humidity: 40%~60% No condensiing
Printer Dimensions (WxDxH)Main body:2770mmx895mmx1428mm(cover closed) / (when installing 2200ml ink bag cases:1712mm)
Printer WeightMain body: 137kg Stand: 32kg
OptionalTake-up UnitSupported media weight up to 30kg
Take-up UnitSupported media weight up to 40kg
Take-up UnitSupported media weight up to 100kg/220lbs
Roll Media FlangeTorque:1kgf.cm 1 piece/box
Roll Media Flange_High TorqueTorque:4kgf.cm 1 piece/box
2200ml Ink Bag CaseSupported ink bag: 1000ml/2200ml 4 cases/box
1000ml Ink Bag CaseSupported ink bag: 1000ml 4 cases/box
Ink Tube Connector4 pieces /box
Cutter BladeReplacement cutter blade
*The specifications are subject to change without notice.
