Eco-Solvent Printer

MUTOH XpertJet 1641SR

A 1625mm/64”, 4 color single head model that offers in excellent balance of performance, image quality and an affordable price range.

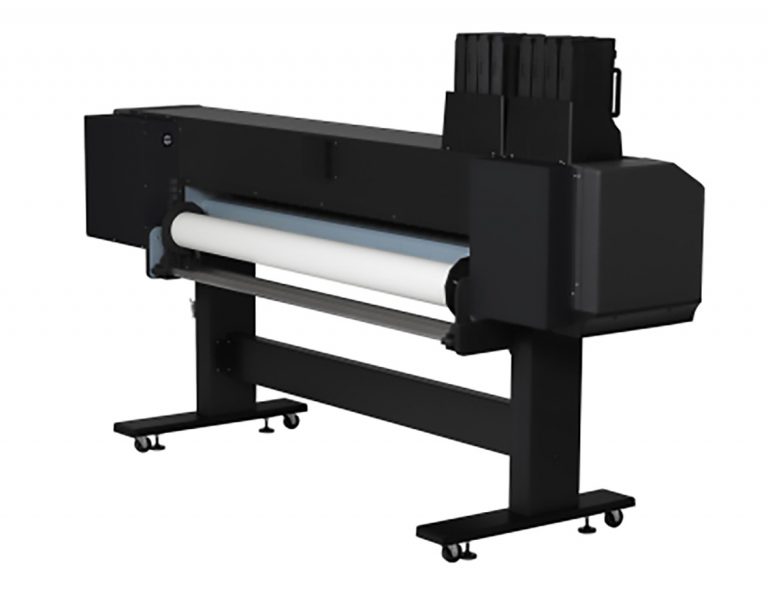

MUTOH XpertJet 1641SR Eco-Solvent Printer

Features

The XpertJet 1641SR, an eco-solvent single head, 4 color (CMYK) printer, offers an excellent balance of performance, image quality and an affordable price range. The newly designed platform provides improved usability and reduces operational workload which will ensure high-quality prints, high production output, and user-friendly operation.
The XPJ-1641SR is pared with the MUTOH’s GreenGuard Gold certified, “MS41” ink, which allows you to install graphics into high sensitivity environments like hospitals, child care facilities and more all while providing users a larger color gamut, outstanding durability, and improved dot gain.
The XPJ-1641SR brings the best “Made in Japan Quality” to the various markets such as banners, trade show graphics, indoor and outdoor signs, POP displays, vehicle wrap and more.

Features:

High Precision Aluminum Rail Mechanism
Multi-stage pressurizing mechanism
Eco-solvent ink “MS41”
Automatic Bi-Directional alignment with built-in color sensor
Automatic media feed adjustment
Nozzle selection
Media roll balance management

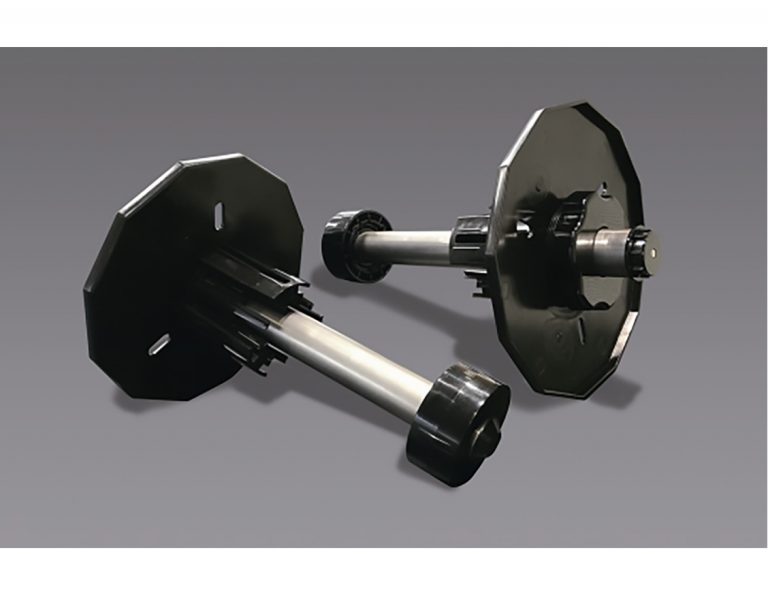

Media feed flange

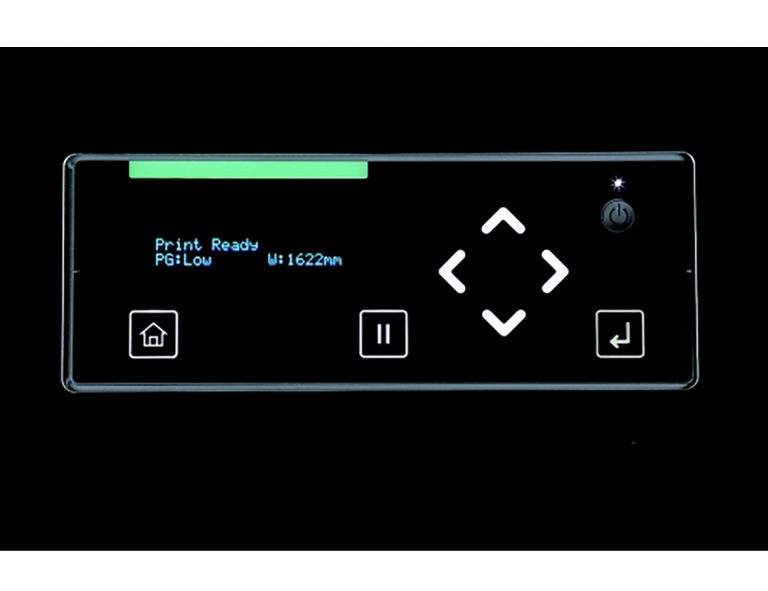

LED touch panel

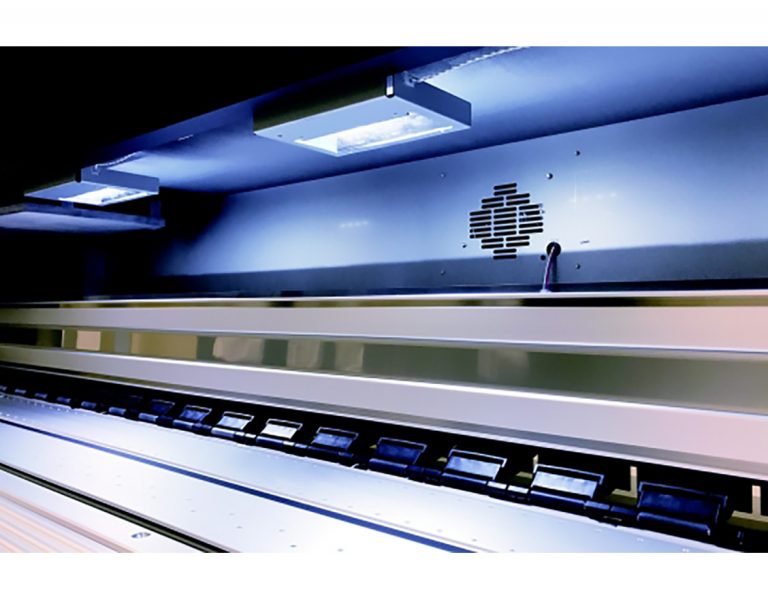

Internal LED lighting
Motorized take-up systems

Applications:

Specifications

Model Name		XPJ-1641SR
Printer Technology		Drop-on-demand Micro Piezo Inkjet Technology
Print Head		1
Head Heights		Low:1.5mm / Middle:2.5mm / High: 4.0mm
Maximum roll media width		Maximum: 1625mm Minimum: 500mm
Maximum media thickness		0.3mm (the head height is set to Low) 1.3mm (the head height is set to Mid) 2.8mm (the head height is set to High)
Diameter		Φ150 mm or less
Tube diameter		2 inches or 3 inches
Weight		30 kg or less
Maximum printable width		1615mm
Maximum print length		1500m
Ink	Type	Eco-solvent ink
	Color	4-color (Black, Cyan, Magenta, Yellow)
	Amount	1000ml ink bag
Print resolution		Maximum 1440dpi
Interface		Ethernet (10BASE-T, 100BASE-TX)
Power supply	Printer	Voltage: AC 100V～120V ±10% / AC 200V～240V ±10%　 Frequency: 50/60Hz ±1Hz
Power supply	Heater	Voltage: AC 100V～120V ±10% / AC 200V～240V ±10%　 Frequency: 50/60Hz ±1Hz
Environmental condition	Printer Operation	Temperature: 20℃～32℃ Humidity: 40%～60% No condensation
Environmental condition	Accuracy Guaranteed	Temperature: 22℃～30℃ Humidity: 40%～60% No condensation
Power consumption	Operation	AC100V～120V/AC200V～240V, 1100W or below
Power consumption	Sleep Mode	AC100V～120V/AC200V～240V, 30W or below
External dimensions (W)x(D)x(H)		Main body:2770mmx895mmx1428mm(cover closed), 1527mm(cover opened ) /(when installing ink bag cases:1611mm）
Weight		Main body: 142kg Stand: 32kg
Optional	Take-up unit	Supported media weight up to 30kg
	Take-up unit	Supported media weight up to 40kg
	Take-up unit	Supported media weight up to 100kg/220lbs
	Roll media flange	Torque:1kgf.cm　1 piece/box
	Roll media flange_high torque	Torque:4kgf.cm　1 piece/box
	2000ml ink bag case	Supported ink bag: 1000ml/2000ml 8 cases/box
	1000ml ink bag case	Supported ink bag: 1000ml 4 cases/box
