Eco-Solvent Printer

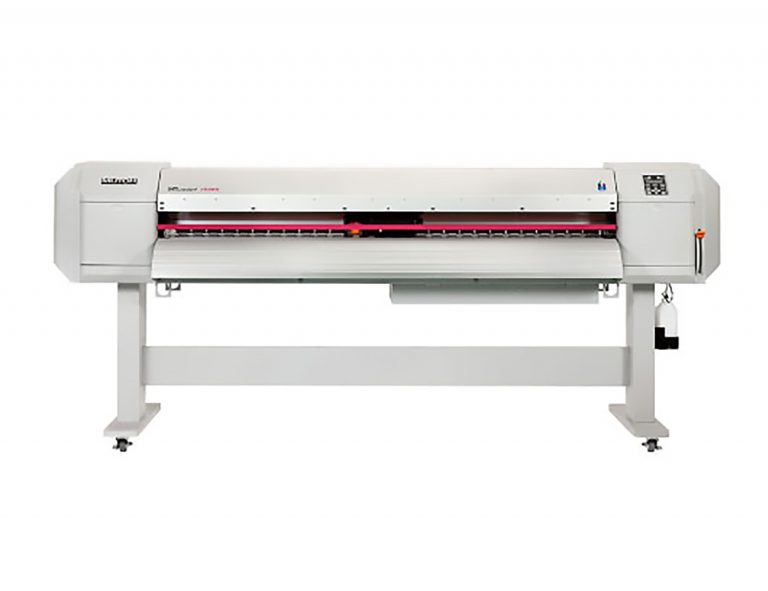

MUTOH ValueJet 1938X

A 1910mm/ 75″ Wide High Speed Sign Printer with the real combination of both speed and quality.

MUTOH ValueJet 1938X Eco-Solvent Printer

Features

The ValueJet 1938X is 1910mm/75” wide dual head sign & display printer, featuring the latest piezo inkjet head technology & high-precision mechanical design, the latest generation electronics and high quality inks.
The VJ-1938X reaches the best-in-class speed and superior print quality at sellable production of 52m²/h*, and it will be a top choice for production oriented customers!
The VJ-1938X printer is just the right size filled a gap between 2625mm/104” and 1625mm/64” wide eco-solvent printers, and offers you with the well-known and much appreciated ValueJet product line features and more.

*at 360x720dpi

Features:

Choice of the MUTOH original eco-solvent inks:
MS31 ink or Ultra Value ink (1L-ink bag)
Up to 7 color capability
Staggered dual print heads
Variable Dot Technology
3 steps head height adjustment
Media heating system
Rear media feed lever

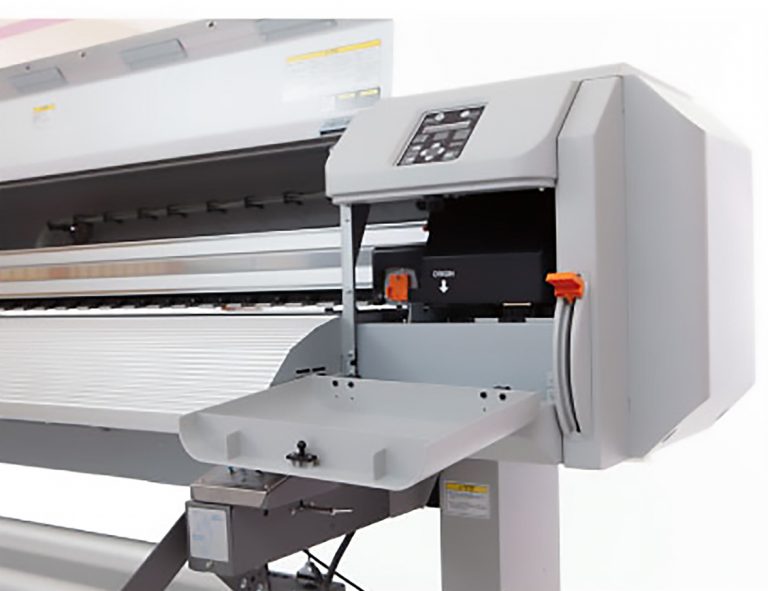

Equipped the automatic cutting function
Easy daily maintenance

Applications:

Specifications

VJ-1938X Specifications

Model Name		VJ-1938X
Printer Technology		Drop-on-demand Micro Piezo Inkjet Technology
Print Head		2 (staggered setup)
Head Heights		Low:1.5mm / Middle:2.5mm / High: 4.0mm
Max. Media Width		1910mm
Max. Print Width		1900mm
Ink Type		Eco-solvent ink
MS31 ink	Ink Colors	KCMY – 4 colors or KCMYLcLmLk – 7 colors
MS31 ink	Ink Volume	220ml / 440ml / 1000ml bag (Need dedicated adapters)
Ultra Value ink	Ink colors	KCMY – 4 colors or KCMYLcLmLk – 7 colors
Ultra Value ink	Ink Volume	1000ml bag (Need dedicated adapters)
Print Resolutions		1440/1080/720/540/360dpi (10 modes as standard + 19 modes as custom**)
Interface		Ethernet 1000BASE-T
Media Measurements*		φ150mm/ 2″ & 3″ / 30kg or less φ250mm/ 2″ & 3″ / 100kg or less (option)
Heater Control System		Pre-heater / Platen-heater / After-heater（30-50℃）, OFF
Power Supply		AC 100-120V / AC 200-240 V – 60/50 Hz
A-property Acoustic Power Level (Actual Measured Value)		69.8dB or less
Printer Accuracy Guaranteed Environment		Temperature: 20～30℃ Humidity: 40～60%RH (Non Condensing)
Power Consumption		Operating Status: 1630W or less (main), 1200W or less (heater) x 2 In standby: 120W or less
Machine Measurements		W 2983 x D 885.5 x H 1261mm
Packing Size		Printer: W 3165 x D 1150 x H 851mm, Weight: 262kg
		Stand: W 2462 x D 395 x H 250mm, Weight: 42kg
		Optional feed and take-up system (100kg): W 2780 x D 1080 x H 433mm, Weight: 159kg
Printer Weight		199kg including a stand
Option		Feed and take-up system VJ-19TUP100 (100kg)
		Take-up system VJ-16/19TUP30 (30kg)
		1,000ml cartridge adapter VJ-HCIPADPT
		Cutter blade VJ-CB

*Due to the removal of the flange joint, the 2-inch media core can be adjusted; however, do not use the solid 2-inch core media.
**Custom modes are set by the RIP software. For the details, please contact your authorized dealer.
