Specialty / Industrial Printers

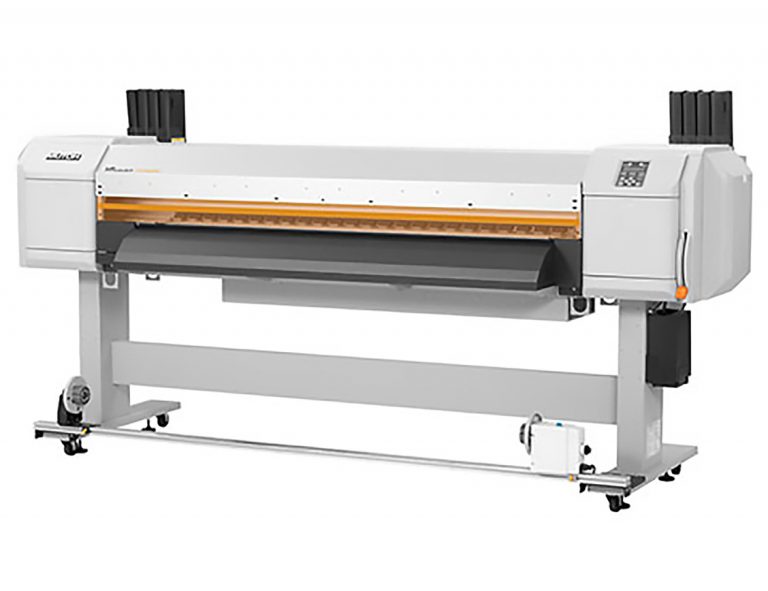

MUTOH ValueJet 1638UR Mark II

A 1625mm/64” wide high speed UV LED roll-to-roll printer produces many versatile applications. The ValueJet 1638UR MarkII is a next-generation UV LED printer with the newly developed MUTOH’s intelligent interweave print technology.

MUTOH ValueJet 1638UR Mark II Specialty / Industrial Printer

Features

The ValueJet 1638UR MarkII is a next-generation UV LED printer with the newly developed MUTOH’s intelligent interweave print technology “i-WeaveUVEx” run by MUTOH genuine RIP software “VerteLith”, which allows you to maximize your print quality while still maintaining faster production speeds.
The “i-WeaveUVEx” expands print mode options for optimal print on desired applications. The VJ-1638UR MarkII is ideally suited for the production of high quality graphics : in-store promotional prints & deco graphics, POP & retail graphics, floor & window prints, customized wall décor prints, stickers, sign blanks, exhibition graphics, fine art prints, packaging samples and more.

Features:

1625mm/64″ UV LED hybrid printer
Dual print heads for increased production
UV LED ink : flexible types – 6 colors (CMYK + Wh + Va)
White ink circulation system integrated

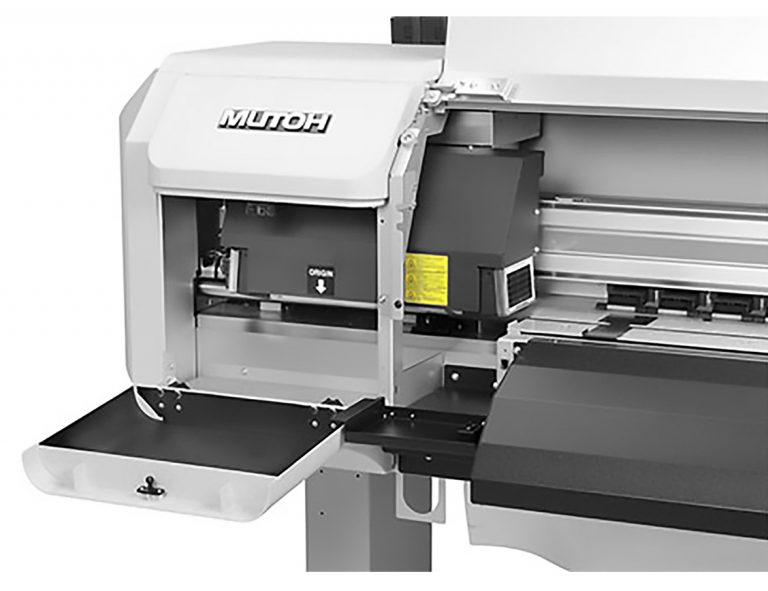

Easy access for maintenance area
User replaceable wiper and removable mist filters
Built-in automatic media cutter
Optional take-up systems
Variable Dot Technology

Applications:

Specifications

Model Name		VJ-1638UR MarkⅡ
Printer Technology		Drop-on-demand Micro Piezo Inkjet Technology
Print Head		2 (Staggered setup)
Print Head Height		Automation (max thickness: 16mm)
Maximum Media Width		1,625mm/ rigid and roll media
Printable Width		1,615mm
Ink	Type	LED-UV ink (US11 flexible ink)
	Ink set	4 colors（C, M, Y, K）/ 5 colors (CMYK+Cl+Va) 6 colors （C, M, Y, K, White + Varnish）
	Volume	220ml (C, M, Y, K, White+Varnish) 800ml (C, M, Y, K, Varnish) 500ml (White)
	No. of slot	8
Maximum Print Resolution		1440x1440dpi（16 pass）
Interface		Gigabit-Ethernet (1000BASE-T)
Media Measurements		φ150mm/ 2″ & 3″ / 30kg
Power Requirements		AC100-240V, 50/60Hz
Printable Environment		Temperature: 20-32℃ < Recommended environment: 22-30℃ >
Printable Environment		Humidity: 40-60%RH (non condensing)
Power Consumption		<Main> Operation status: 770W or less / Standby: 55W or less
Dimensions (WxDxH) / Weight		Body including stand：2,983x818x1,261mm Body: 152kg
Dimensions (WxDxH) / Weight		Stand: 37kg
Take-up system (optional)		30 kg and 40kg take-up systems/100kg feed and take-up system

*The specifications are subject to change without notice.
*500/800ml bags require optional adapter.
