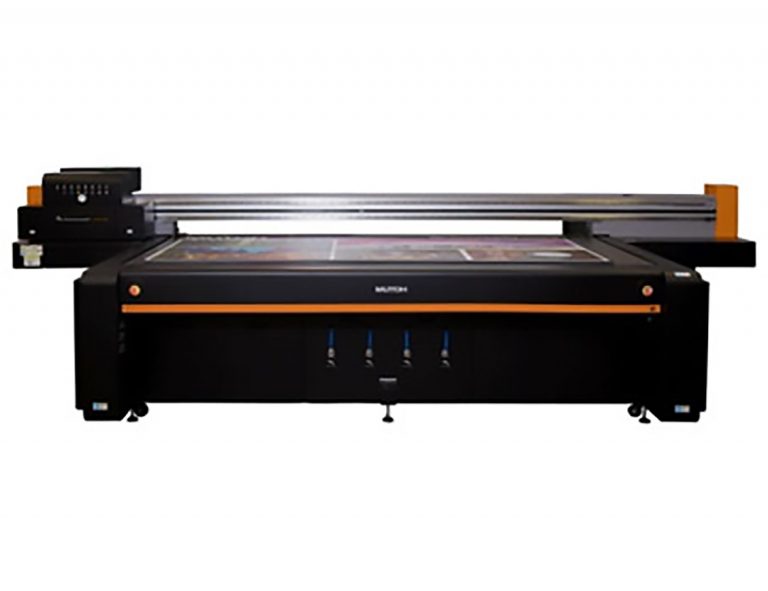

MUTOH PerformanceJet 2508UF

The PerformanceJet 2508UF is a performance model in flatbed printing with field upgradable head configurations of up to 6 sets.

MUTOH PerformanceJet 2508UF Specialty / Industrial Printer

Features

The PerformanceJet 2508UF is a performance model in flatbed printing with field upgradable head configurations of up to 6 sets. 4 sets of staggered print heads are installed as standard, achieving high-speed printing. In addition, the maximum resolution of 600×1200 dpi and the latest printing technology enables the PJ-2508UF to achieve high image quality and outstanding performance.
The PJ-2508UF is equipped with automatic media thickness detector supporting media up to 4″/100mm 50kg/m2 (92.15lbs./sq.yd).

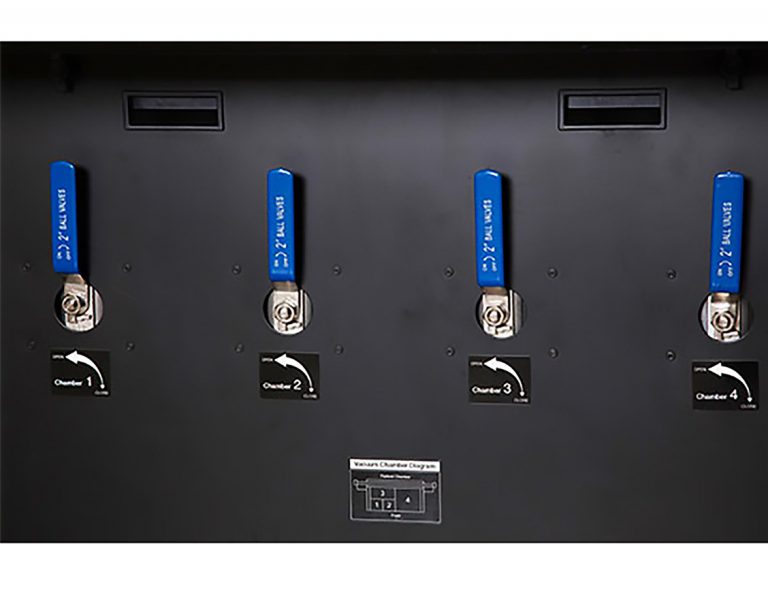

The printer also comes standard with an automatic media registration pin system and a vacuum table with “blow-back” feature for easy handling and positioning of heavy media. The vacuum table is divided into four zones firmly fixing various media sizes and improving work efficiency.

Features:

4′ x 8′ true flatbed UV LED printer
Up-gradable print head configuration
High-speed & high quality printing
MUTOH UV LED Ink（rigid type)– 6 colors (CMYK + Wh + Va)
Auto media thickness detector
4 zone vacuum table

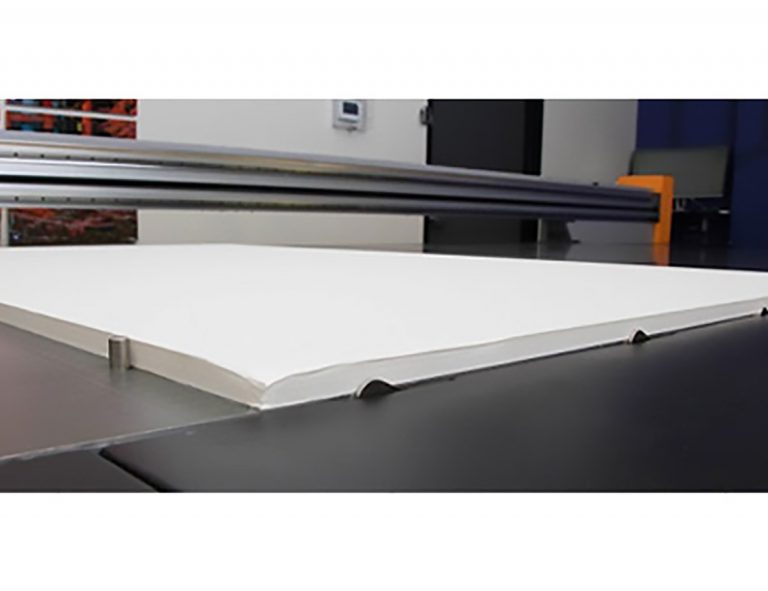

Automatic media registration pin system and vacuum table with “blow-back” feature
Static Elimination system

Applications:

Specifications

Model Name		PJ-2508UF
Printer Technology		Drop-on-demand Micro Piezo Inkjet Technology
Print Head		4 (Standard) / field upgradeable to 6
Max. Media Size		2540ｘ1250mm(4’x8’) for rigid media
Max. Print Size		2540ｘ1250mm(4’x8’) for rigid media
Max. Media Thickness		4″ (101.6mm) with auto detective function
Max. Media Weight		92.15lbs./sq.yd (50kg/㎡)
UV Lamp	Type	UV LED
UV Lamp	No.	2
Ink	Type	UV LED ink (rigid type)
	Colors	4 colors (C, M, Y, K) – 4 head set-up only 5 colors (C, M, Y, K, White) – 6 head set-up only (white channels are double vs. C,M,Y, K ) 6 colors (C, M, Y, K, White, Varnish) – 4 head or 6 head set-up
	Amount	1500ml for tank/1000ml bottle for supply
	No. of tank	8
Print Resolutions *		600×300, 600×600, 600×900, 600x1200dpi
Distance Accuracy		±0.2mm, or ±0.2% whichever is bigger
Interface		USB3.0 (cable length: 50cm）
Power Requirement		Main: 220-240V, 50/60Hz±1Hz　25A
Operating Condition		Temperature:20-30℃ 　Humidity: 40-80%RH (no condensing)
Consumption		Min: 5500W or less
Printer dimensions (W）×（D）×（H）		4740mm x 2000mm x 1493mm
Printer Weight		1250㎏
RIP Software support (optional)		SAi FlexiSIGN & PRINT MUTOH Edition, Caldera and Onyx

Controller PC and compressor are separately required.
*The actual print resolutions are 605 x 300, 605×600, 605x1200dpi.
