Graphtec FC9000 Best in class ability

1485mm/s maximum cutting speed, 39.2m/s² maximum acceleration, 5.88N (600gf) maximum cutting force. The FC9000 Series offers best in class productivity and abilities with a wider range of medias from thick to thin.

Graphtec-FC9000-lineup_0000_Layer-5-768x591

Graphtec-FC9000-lineup_0001_Layer-4-768x591

Graphtec-FC9000-lineup_0002_Layer-3-768x591

Graphtec-FC9000-lineup_0003_Layer-2-768x591

GRAPHTEC FC9000 Cutting Plotter Machine

Features

Size Lineup

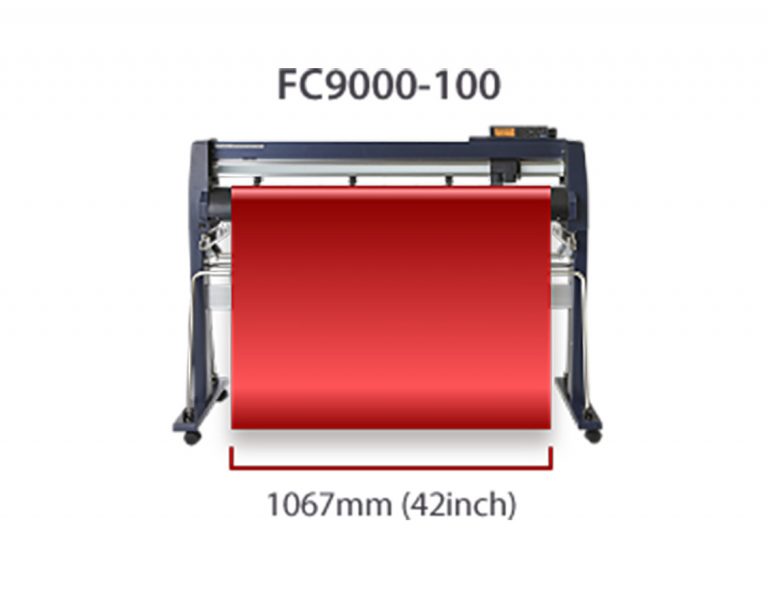

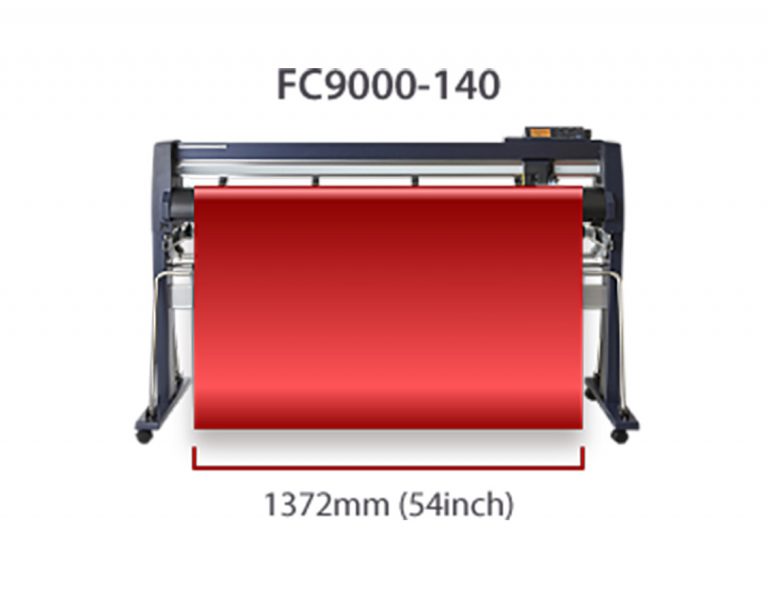

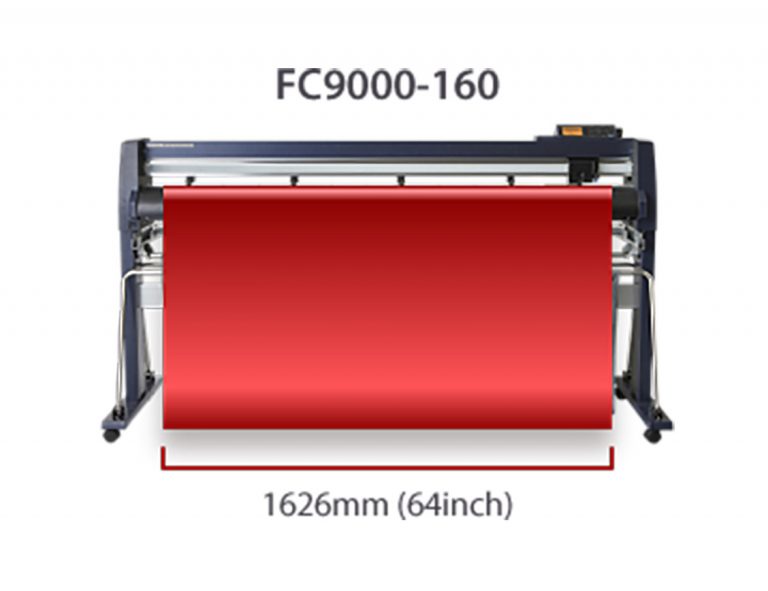

Four sizes to match all requirements.

Reliable long-length tracking (Automatic Take-up Roller)

It supports long-length, 15m (50ft) (Operated with Graphtec specified media and conditions.) and makes possible to cut large signs/pops with stable paper carriage and high accurate cutting quality. In addition, if Automatic Take-up Roller as option is equipped to plotter, it becomes possible to automatically wind media and improve your work efficiency.

Specifications

Item	FC9000-75	FC9000-100	FC9000-140	FC9000-160
Configuration	Grit rolling type
Drive method	Digital servo drive
Max. cutting area (W x L) (*1)	762mm × 50m	1067mm × 50m	1372mm × 50m	1626mm × 50m
Cutting area of guaranteed accuracy (*1)	742mm × 15m	1047mm × 10m 762mm × 15m	1352mm × 10m 762mm × 15m	1607mm × 10m 762mm × 15m
Mountable media width (*2)	Min. 50mm
Mountable media width (*2)	Max. 920mm (36.2 inch)	Max. 1224mm (48.1 inch)	Max. 1529mm (60.1 inch)	Max. 1850mm (72.8 inch)
Mountable roll media diameter	76 to 200mm (160mm when the optional paper ange (OPH-A21) is installed)
Mountable roll media mass	12kg	16kg	20kg	24kg
Compatible take-up roll width	–		200 to 1372mm	200 to 1626mm
Compatible take-up roll mass	–		20kg
Maximum cross cut width	762mm	1067mm	1372mm	1626mm
Max. cutting speed	1485mm/s at 45° direction
Axial acceleration	Max. 39.2m/s² at 45° direction
Cutting force	Max. 5.88N (600gf)
Minimum character size	Approx. 5 mm alphanumeric (varies depending on character font and media)
Mechanical resolution	0.005mm
Programmable resolution	GP-GL：0.1 / 0.05 / 0.025 / 0.01mm HP-GL™ (*3)：0.025mm
Repeatability (*1)	Max. 0.1 mm in plot up to 2 m (Excluding media expansion and contraction)
Number of push rollers	2 rollers	3 rollers	4 rollers (Max. 5 (option))
Mountable number of tools	1 tool (mountable 2 tools (option))
Blade types	Supersteel
Pen types	Oil-based ballpoint pen, Water-based fiber-tip pen
Media types	Thickness 0.25mm or less Marking film (PVC film / fluorescence / reflective), Polyester film (on condition), High Intensity reflective film (Diamond grade, Engineer grade) (*4)
Display	Graphic type LCD with back-light (240dots × 128dots), supports 10 languages
Interface	USB 2.0(Full Speed), Ethernet 10BASE-T/100BASE-TX
Buffer memory	2MB
Command sets	GP-GL / HP-GL™ (Set by command or auto-detect) (*3)
Compatible OS (*5)	Windows 11 (Home / Pro / Enterprise / Education) Windows 10 (Home / Pro / Enterprise / Education) Windows 8.1 (Windows 8.1 / Pro / Enterprise) Mac OS X 10.6～10.11 / macOS 10.12 ～ 12 (Graphtec Studio: 10.6 – 12, Cutting Master 4: 10.7 – 12)
Supported software DOWNLOAD	Graphtec Pro Studio (6), Graphtec Studio, Cutting Master 4 (6), Windows Driver
Power source	100 V to 240 V AC, 50 / 60 Hz
Power consumption	Max. 120 W
Operating environment	10 to 35 ºC, 35 to 75 % R.H. (non-condensing)
Guaranteed accuracy environment	16 to 32 ºC, 35 to 70 % R.H. (non-condensing)
External dimensions (W × D × H) * Includes stand and basket.	Approx. 1360ｘ1151ｘ1232 mm	Approx. 1665ｘ1151ｘ1232 mm	Approx. 1970ｘ1151ｘ1232 mm	Approx. 2224ｘ1151ｘ1232 mm
Weight (approx.) * Includes stand and basket.	49 kg	56 kg	64.0 kg (80.9kg with installed automatic take-up roller)	70.0 kg (88.5kg with installed automatic take-up roller)
Safety	PSE, UL/cUL, CE mark
EMC	VCCI Class A, FCC Class A, CE mark

(*1) Operated with Graphtec specified cutting condition and media. For long-length cutting, the basket is used.
(*2) There are conditions for operability when setting media.
(*3) HP-GL^TM is a registered trademark of Hewlett-Packard Company.
(*4) CB15UA/CB15UA-K30 blades and reinforced backing sheets are recommended for certain grades of high-intensity reflective film.
(*5) Graphtec does not support software/driver used with operating systems that have become obsolete and are no longer supported by the OS developer.
(*6) It requires an Internet connection in order for activation or registration when starting the software for the rst time.

Standard accessories

Item	Q’ty	Description
Power cord	1	The type of cord is different by destination.
USB Cable	1	2.9m long
Cutting blade holder	1	PHP33-CB09N-HS
Cutting Blade	1	CB09UB-1P
Loupe	1	PM-CT-001
Fiber-tip pen holder	1	PHP31-FIBER
Water-based Fiber-tip pen	1	KF700-BK (black)
Stand	1
Media Stocker	1
Basket	1
Flange set	1	OPH-A21 (Only in limited sales area.)
DVD-ROM	1	User manual, Windows driver, Graphtec Pro Studio (Windows, 1 license), Graphtec Studio (Mac), Cutting Master4
Printed document	1	SetupManual, Cutter Blade Manual and Safety Manual

Option

Item	Part No.	Description
Automatic Take-up Roller	OPH-A43	For FC9000-140
Automatic Take-up Roller	OPH-A44	For FC9000-160
Additional push roller kit	OPH-A47	For FC9000-140 or FC9000-160
2nd pen holder	ECK0013	For dual tool configuration (dealer option)
Flange	OPH-A21	Flange for media holding
Graphtec Pro Studio Plus	OPS682-PLS	Design software including all advanced functions (1 license)
Graphtec Pro Studio Plus for Rhinestone	OPS682-RSF	Limited edition of rhinestone function only (1 license)
Graphtec Pro Studio Plus for Auto Nesting	OPS682-ANF	Limited edition of auto nesting function only (1 license)

Dimensions

	FC9000-75	FC9000-100	FC9000-140	FC9000-160
External dimensions (approx.) 【W×D1(D2)×H】	1360ｘ1151(840)ｘ1232 mm	1665ｘ1151(840)ｘ1232 mm	1970ｘ1151(840)ｘ1232 mm	2224ｘ1151(840)ｘ1232 mm

* Includes stand and basket.
* Tolerance : +/- 5 mm
