Cutting Plotter Machine

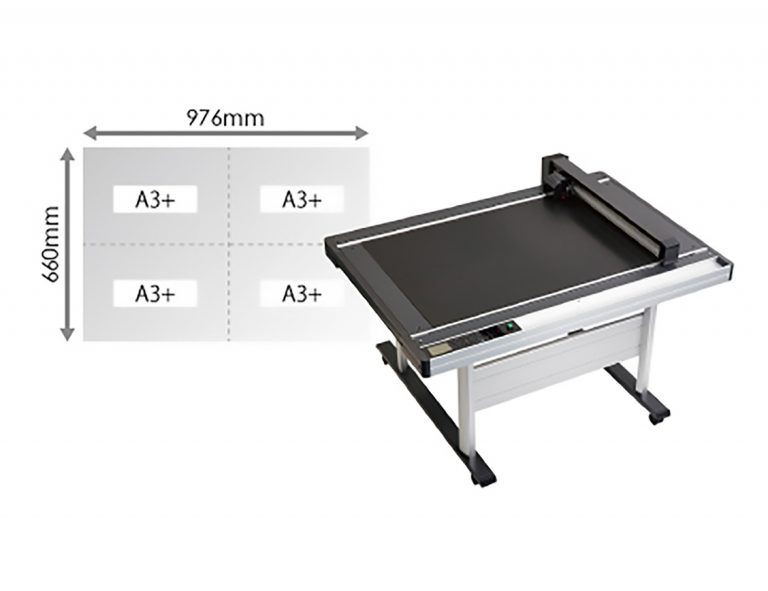

Graphtec FCX4000 Series No Compromise Low-Cost Die-Free Cutting And Processing

The FCX2000 is the ultimate solution for prototyping and small production runs of rigid materials without the use of a cutting die. Reduce media waste / processing time with Graphtec’s precision cutting and dedicated software. Added offline (USB) operation enables users of all skill levels to easily process materials.

Consumable Item

Item	Model Name	Description
Cutting blade holder	PHP33-CB09N-HS	For CB09U series blade
	PHP33-CB15N-HS	For CB15U series blade
	PHP35-CB09-HS	For CB09U series blade
	PHP35-CB15-HS	For CB15U series blade
Cutting blade	CB09UB-5	0.9mm dia. 45º, Supersteel	Self-adhesive marking film (vinyl, fluorescent, refractive), thin sheet, up to 0.25 mm thick.
	CB15U-5	1.5mm dia. 45º, Supersteel	Rigid or thick film or sheet, heavy paper (pattern paper, oil board), 0.25 mm to 0.5 mm thick.
	CB15U-K30-5	1.5mm dia. 30º, Supersteel	Rigid or thick sheet, 0.25 mm to 0.5 mm thick. Sandblast resist rubber, up to 1.0 mm thick. And also small detailed characters on marking film (up to 0.25 mm thick).
	CB15UA-5	1.5mm dia. 45º, Supersteel	High-intensity reflective film or harder film, up to 0.5 mm thick.
	CB15UA-K30-5	1.5mm dia. 30º, Supersteel	High-intensity reflective film or harder film, up to 1.0 mm thick.
Loupe	PM-CT-001	Checking blade length, for PHP33 and PHP35 series
Creasing / Scoring tool	CP-001	Stick type, for heavy paper
Creasing / Scoring tool	PM-CT-002	Ball on tip of stick, for curve on heavy paper
Fiber-tip pen, pen holder	KF700-BK	Water-based fiber-tip pen, Black
	KF700-RD	Water-based fiber-tip pen, Red
	PHP31-FIBER	Pen holder for KF700 series pen
Adhesive sheet, Cling mat	CM-0003-R1A	Adhesive sheet, supplying in roll, size 545 mm x 20 m
	CM-0004	Cling mat for film based materials, size 435 x 610 mm
	CM-0005	Cling mat for paper based materials, size 435 x 610 mm
	PM-CM-001	Cling mat for film based type material, size 660 mm x 488 mm
	PM-CM-002	Cling mat for paper based type material, size 660 mm x 488 mm
Protect Sheet	PM-CR-002A	For protecting the writing panel of FCX4000-50ES, Transparent vinyl, thickness 0.3 mm
Protect Sheet	PM-CR-003A	For protecting the writing panel of FCX4000-60ES, Transparent vinyl, thickness 0.3 mm
